Thursday, December 27, 2012

CNC mill - X and Y axis ready..

With the X and Y axis of the CNC mill ready, I could finally do the first CNC cut.

First cut was an easy circle with manual Z feed. I am pretty pleased to see that the contraption actually seems to work!

I need to do some calibration and finish the Z axis, but this looks promising!



Monday, December 03, 2012

Underside of beams

Underside of beam seats with reinforcements and waterproofing.


Underside of beams

Underside of beam seats with reinforcements and waterproofing.




After gluing

Nice glue lines along deck beams and gunwhales.


Sunday, December 02, 2012

Main deck in place

Done, all glued and strapped in its proper place.


Main deck

Main deck ready to go on.






Monday, August 27, 2012

Glassing foredeck

Glass goimg on to the foredeck on our second hull. Next is waterproofing the beam bolts!

Pics showing before and after putting on the glass.

Monday, July 09, 2012

The best tools..

Frode working with our favourite tools. The variable speed angle grinder with a soft backing plate and the mass remover, aka. belt sander.

Sunday, July 08, 2012

Under beamseat spreaders

A pic showing our custom alu pieces that will spread the load from the bolts under the whole beamseat.

Gudgeon blanks

Just a smalt post showing the mould and gudgeon blank we pulled off it. All carbon which will be cut and finalized before it is mounted on the transoms.

Saturday, July 07, 2012

80gsm glass arrived

Finally the glass for the decks arrived. Had to order this from Germany.. HP Textiles is a very good supplier. Ships quickly and I had a hard time sourcing 80gsm glass in Norway. Customs delayed my glass for days and days though.

Now it is here so some glassing is in the schedule.

Friday, June 15, 2012

In between boatbuilding - CNC mill!

In between the boatbuilding I also work on converting a table top mill to CNC control. Great fun as metalworking is an almost unknown skill to me.

Picture of the first motor mount with stepper.


Homemade carbon chainplates.. Experimental

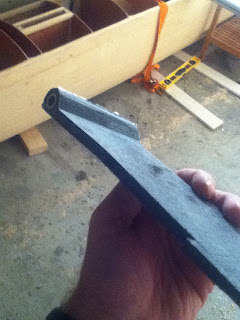

Just two quick photos showing our carbon chainplates installed and the blank they were made from. Chainplates are glued into the hulls.

Inside the hole in the chainplate is a stainless steel tube to take any abrasion. This steel is isolated from the carbon by two layers of 200gsm glass.

You can read about the stress test we did here: http://www.catsailor.com/forums/ubbthreads.php?ubb=showflat&Number=247737#Post247737

Here are some pics from the stress test:

Getting the test rig ready:
 Test rig in operation:
 End result was a bent 5mm 316SS bolt and our last reading was 3.8 tons of load sustained. I think we have a good margin of strength to work with here.

Tuesday, June 12, 2012

Been a while..

We have been working on repetitive tasks for a while now. But finally something more interesting to show!

Hulls are now mostly complete. Still some details to do under the beamseats to make it all waterproof and the rear plywood deck to install. But major work is now done. Well, at least all major work except fairing and painting..

The picture shows the geometry of the finished platform. This was before drilling the beams and beam seats.

Currently the mainbeam have been seated with epoxy and is now hardening in my workshop. Pictures later :-)


We are now going to work on more interesting stuff and new stuff, so updates will be more frequent.
